SiLM5350系列

单通道 30V, 10A 隔离栅极驱动器

样片申请

SiLM5350 Datasheet SiLM5350-AQ_Datasheet

产品概述

产品特性

安规认证

典型应用图

产品概述

SiLM5350系列是具体有10A峰值输出电流能力，并具有不同配置的单通道隔离式栅极驱动器。SiLM5350S提供分离输出，可分别控制上升和下降时间。SiLM5350M可提供内部钳位功能。驱动电源电压为4V至30V。3V至18V的宽输入VDDI范围使驱动器适合与模拟和数字控制器接口。所有电源电压引脚都有欠压锁定 (UVLO) 保护。

SiLM5350提供SOP8和SOP8W两种封装，SOP8封装提供3.0kVRMS隔离耐压，而SOP8W封装能提供5.0kVRMS隔离耐压。

高CMTI、低传播延迟、小尺寸、灵活性和成本效益使SiLM5350系列适用于各种隔离MOSFET、IGBT和SiC MOSFET以及GaN FET的驱动应用。

产品特性

10A 峰值输出电流

80ns 典型传输延迟

最小150kV/us 共模瞬态抗扰度 (CMTI)

输出驱动器电源电压范围 4V 到 30V

5V 输入反向耐压能力

工作结温范围, TJ: –40°C ~ +150°C

特性选项：
- 分离的输出管脚 (SiLM5350S/R/H)
- 带Clamp钳位功能(SiLM5350M/F/P)

符合车规认证AEC-Q100

安规认证

SOP8: 符合 UL 1577 1 分钟的 3.0kVRMS

SOP8W: 符合 UL 1577 1 分钟的 5.0kVRMS

符合 DIN V VDE 0884-11(计划中)

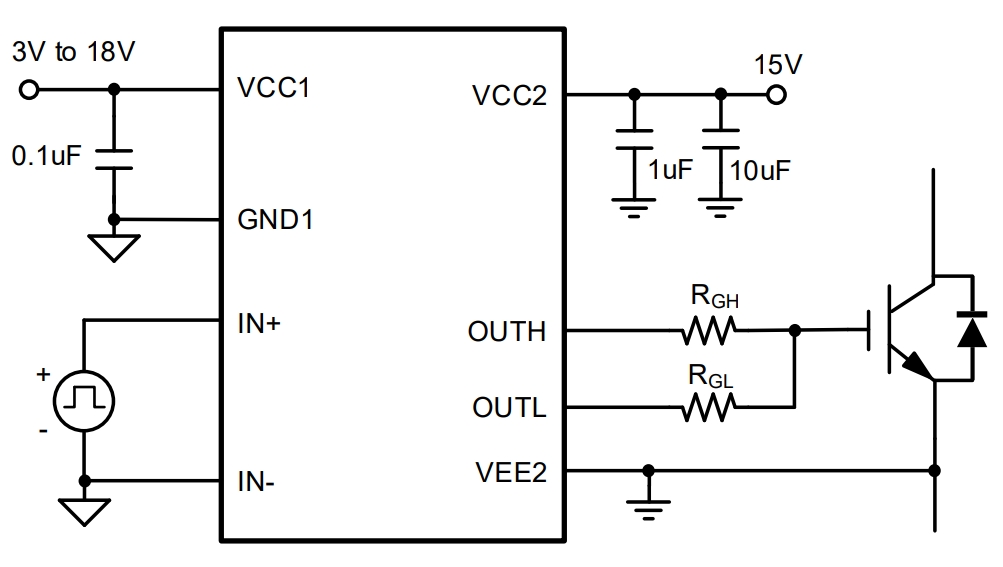

典型应用图

产品参数表

展开过滤器

Part Number	Power Switch	Feature	Input VCC (V)	IOH/IOL(A)	Output VCC/VDD (V)	Prop. Delay (ns)	CMTI (kV/μs) Min.	VISO(Vrms)	Operating Temp (℃)	Package Group	Packing/QTY
SiLM5350SDBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SBBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SABCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SGBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RDBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RBBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RABCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RGBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HDBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HBBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HABCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HGBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MDBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MBBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MABCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MGBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FDBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FBBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FABCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FGBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PDBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PBBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PABCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PGBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SDDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SBDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SADCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SGDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RDDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RBDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RADCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RGDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HDDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HBDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HADCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HGDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MDDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MBDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MADCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MGDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FDDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FBDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FADCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FGDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PDDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PBDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PADCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PGDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SDBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SBBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SABCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SGBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RDBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RBBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RABCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RGBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HDBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HBBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HABCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HGBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MDBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MBBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MABCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MGBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FDBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FBBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FABCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FGBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PDBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PBBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PABCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PGBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SDDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SBDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SADCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SGDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RDDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RBDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RADCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RGDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HDDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HBDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HADCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HGDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MDDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MBDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MADCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MGDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FDDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FBDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FADCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FGDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PDDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PBDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PADCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PGDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
